SIEMENS SIMATIC SM7-300 DIGITAL MODULE SM322 6ES7 322-1BL00-0AA0 32 DO 24V DC

SIEMENS SIMATIC SM7-300 DIGITAL MODULE SM322   6ES7   322-1BL00-0AA0  32 DO 24V DC

-	SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 32DO, 24V DC, 0.5A, 1 X 40 PIN, SUM OF OUTPUT CURRENTS 4A/GROUP (16A/MODULE)
Supply voltage
Load voltage L+
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Input current
from load voltage L+ (without load), max.	160 mA
from backplane bus 5 V DC, max.	110 mA
Power losses
Power loss, typ.	6.6 W
Digital outputs
Number/binary outputs	32
Limitation of inductive shutdown voltage to	L+ (-53 V)
Lamp load, max.	5 W
Load resistance range
lower limit	48 Ω
upper limit	4 kΩ
Output voltage
for signal “1″, min.	L+ (-0.8 V)
Output current
for signal “1″ rated value	0.5 A
for signal “1″ permissible range for 0 to 40 °C, max.	0.6 A
for signal “1″ minimum load current	5 mA
for signal “0″ residual current, max.	0.5 mA
Switching frequency
with resistive load, max.	100 Hz
with inductive load, max.	0.5 Hz
on lamp load, max.	10 Hz
Aggregate current of outputs (per group)
horizontal installation
up to 40 °C, max.	4 A
up to 60 °C, max.	3 A
vertical installation
up to 40 °C, max.	2 A
Cable length
Cable length, shielded, max.	1000 m
Cable length unshielded, max.	600 m
Interrupts/diagnostics/status information
Alarms
Diagnostic alarm	No
Diagnostic messages
Diagnostics	No
Wire break	No
Short circuit	No
Missing load voltage	No
Diagnostics indication LED
Rated load voltage PWR (green)	No
Fuse OK FSG (green)	No
Galvanic isolation
Galvanic isolation digital outputs
between the channels, in groups of	8
between the channels and the backplane bus	Yes; Optocoupler
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	40-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	260 g

Our company have the compatible cable, named 322-1BL00-0AA0 ,  can replace Siemens 6ES7 322-1BL00-0AA0 .You can have a look on the picture.
You can get it only need USD264.00/pc.    Buy now ====> It’s tested before shippment.Not made by Siemens,OEM product as the replacement.The quality is guaranteed, we have 1 year warranty for our compatible products.

SIEMENS SIMATIC SM7-300 DIGITAL MODULE SM322 6ES7 322-1HH01-0AA0 16 DO 24 VDC

-	SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED 16DO, RELAY CONTACTS, 1 X 20 PIN
Supply voltage
Load voltage L+
Rated value (DC)	120 V
Load voltage L1
Rated value (AC)	230 V
Input current
from backplane bus 5 V DC, max.	100 mA
Power losses
Power loss, typ.	4.5 W
Digital outputs
Number/binary outputs	16; Relay
Lamp load, max.	50 W; 230 V AC
Output current
for signal “1″ rated value	2 A
for signal “1″ minimum load current	10 mA
Switching frequency
with resistive load, max.	1 Hz
with inductive load, max.	0.5 Hz
on lamp load, max.	1 Hz
mechanical, max.	10 Hz
Aggregate current of outputs (per group)
horizontal installation
up to 60 °C, max.	8 A
vertical installation
up to 40 °C, max.	8 A
Relay outputs
Rated input voltage of relay coil L+ (DC)	24 V
Number of operating cycles, max.	100000; 50000 (24 V DC, at 2 A); 700000 (120 V AC, at 2 A); 100000 (230 V AC, at 2 A)
Switching capacity of contacts
with inductive load, max.	2 A; 2 A (230 V AC), 2 A (24 V DC)
Switching frequency/contacts/at ohmic load/maximum	2 A; 2 A (230 V AC), 2 A (24 V DC)
Cable length
Cable length, shielded, max.	1000 m
Cable length unshielded, max.	600 m
Interrupts/diagnostics/status information
Alarms
Diagnostic alarm	No
Diagnostic messages
Diagnostics	No
Wire break	No
Short circuit	No
Fuse blown	No
Missing load voltage	No
Diagnostics indication LED
Rated load voltage PWR (green)	No
Fuse OK FSG (green)	No
Galvanic isolation
Galvanic isolation digital outputs
between the channels, in groups of	8
between the channels and the backplane bus	Yes; Optocoupler
Isolation
Isolation checked with	1500 V AC
Connection method
required front connector	20-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	250 g

Our company have the compatible cable, named 322-1HH01-0AA0,  can replace Siemens 6ES7 322-1HH01-0AA0.You can have a look on the picture.

You can get it only need USD197/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

SIEMENS SIMATIC SM7-300 DIGITAL MODULE SM322 6ES7322-1BH01-0AA0 16DO 24V DC

-	SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 16 DO, 24V DC, 0.5A, 1 X 20 PIN SUM OF OUTPUT CURRENTS 4A/GROUP (8A/MODULE)
Supply voltage
Load voltage L+
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Input current
from load voltage L+ (without load), max.	80 mA
from backplane bus 5 V DC, max.	80 mA
Power losses
Power loss, typ.	4.9 W
Digital outputs
Number/binary outputs	16
Limitation of inductive shutdown voltage to	L+ (-53 V)
Lamp load, max.	5 W
Load resistance range
lower limit	48 Ω
upper limit	4 kΩ
Output voltage
for signal “1″, min.	L+ (-0.8 V)
Output current
for signal “1″ rated value	0.5 A
for signal “1″ permissible range for 0 to 40 °C, max.	0.6 A
for signal “1″ minimum load current	5 mA
for signal “0″ residual current, max.	0.5 mA
Switching frequency
with resistive load, max.	100 Hz
with inductive load, max.	0.5 Hz
on lamp load, max.	10 Hz
Aggregate current of outputs (per group)
horizontal installation
up to 40 °C, max.	4 A
up to 60 °C, max.	3 A
vertical installation
up to 40 °C, max.	2 A
Cable length
Cable length, shielded, max.	1000 m
Cable length unshielded, max.	600 m
Interrupts/diagnostics/status information
Alarms
Diagnostic alarm	No
Diagnostic messages
Diagnostics	No
Wire break	No
Short circuit	No
Fuse blown	No
Missing load voltage	No
Diagnostics indication LED
Rated load voltage PWR (green)	No
Fuse OK FSG (green)	No
Galvanic isolation
Galvanic isolation digital outputs
between the channels, in groups of	8
between the channels and the backplane bus	Yes; Optocoupler
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	20-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	190 g

Our company have the compatible cable, named 322-1BH01-0AA0,  can replace Siemens 6ES7 322-1BH01-0AA0.

You can have a look on the picture.

You can get it only need USD132.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Please check below descriptions of our OEM 322-1BH01-0AA0:

Technical specifications
Power consumption
·From backplane bus	80mA
·Power loss	4.9W
Number of digital contact	16
Cable length: shielded	1,000m
Cable length: unshielded	600m
Short-circuit protection	Yes,Electronic
Inductive cutoff voltage	L+(-53V)
Lamp load Max.	5W
Output  voltage  “1”signal	Min. L + (-0.8V)
Output  current  “1”signal	0.5A
Sum of output currents(per group)	4A
Service life of contacts
·Mechanical
·At rated load voltage
Isolation tested for contact
·To backplane bus	Optocoupler
·Per group between channelsSwitching Frequency of contacts	Yes
·Resistive loads,Max	100Hz
·Capacitive loads,Max	0.5Hz
·Lamp loads,Max	10Hz
·Mechanical load,Max
The status indicates	Green LED each channel
Frontconnestor	20-Pin
Dimensions(W x H x D)(mm)	40×125×120
weight	210g
Wiring Diagram

Any question, please feel free to contact me.

SIEMENS SIMATIC SM7-300 DIGITAL MODULE 6ES7322-1BF01-0AA0, SM322, 8DO, 24V DC, 2A

SIEMENS SIMATIC  SM7-300 DIGITAL MODULE 6ES7322-1BF01-0AA0 SM322, 8DO, 24V DC, 2A

-	SIMATIC S7-300, DIGITAL OUTPUT SM 322, OPTICALLY ISOLATED, 8 DO, 24V DC, 2A, 1 X 20 PIN
Supply voltage
Load voltage L+
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Input current
from load voltage L+ (without load), max.	60 mA
from backplane bus 5 V DC, max.	40 mA
Power losses
Power loss, typ.	6.8 W
Digital outputs
Number/binary outputs	8
Limitation of inductive shutdown voltage to	L+ (-48 V)
Lamp load, max.	10 W
Load resistance range
lower limit	12 Ω
upper limit	4 kΩ
Output voltage
for signal “1″, min.	L+ (-0.8 V)
Output current
for signal “1″ rated value	2 A
for signal “1″ permissible range for 0 to 40 °C, max.	2.4 A
for signal “1″ minimum load current	5 mA
for signal “0″ residual current, max.	0.5 mA
Switching frequency
with resistive load, max.	100 Hz
with inductive load, max.	0.5 Hz
on lamp load, max.	10 Hz
Aggregate current of outputs (per group)
horizontal installation
up to 40 °C, max.	4 A
up to 60 °C, max.	4 A
vertical installation
up to 40 °C, max.	4 A
Cable length
Cable length, shielded, max.	1000 m
Cable length unshielded, max.	600 m
Interrupts/diagnostics/status information
Alarms
Diagnostic alarm	No
Diagnostic messages
Diagnostics	No
Wire break	No
Short circuit	No
Fuse blown	No
Missing load voltage	No
Diagnostics indication LED
Rated load voltage PWR (green)	No
Fuse OK FSG (green)	No
Galvanic isolation
Galvanic isolation digital outputs
between the channels, in groups of	4
between the channels and the backplane bus	Yes; Optocoupler
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	20-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	190 g

Our company have the compatible cable, named 322-1BF01-0AA0,  can replace Siemens 6ES7 322-1BF01-0AA0.You can have a look on the picture.

You can get it only need USD114.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

SIEMENS SIMATIC SM7-300 DIGITAL MODULE SM 321: 6ES7321-1BL00-0AA0 32DI, DC24V

SIMATIC S7-300, DIGITAL INPUT SM 321, OPTICALLY ISOLATED 32DI, 24 V DC, 1 X 40 PIN

Please check below data sheet of Siemens original 6ES7321-1BL00-0AA0  :

-	SIMATIC S7-300, DIGITAL INPUT SM 321, OPTICALLY ISOLATED 32DI, 24 V DC, 1 X 40 PIN
Supply voltage
Load voltage L+
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Input current
from backplane bus 5 V DC, max.	15 mA
Power losses
Power loss, typ.	6.5 W
Digital inputs
Number/binary inputs	32
Input characteristic curve acc. to IEC 61131, Type 1	Yes
Number of simultaneously controllable inputs
horizontal installation
up to 40 °C, max.	32
up to 60 °C, max.	16
vertical installation
up to 40 °C, max.	32
Input voltage
Type of input voltage	DC
Rated value, DC	24 V
for signal “0″	-30 to +5 V
for signal “1″	13 to 30 V
Input current
for signal “1″, typ.	7 mA
Input delay (for rated value of input voltage)
for standard inputs
Parameterizable	No
at “0″ to “1″, min.	1.2 ms
at “0″ to “1″, max.	4.8 ms
Cable length
Cable length, shielded, max.	1000 m
Cable length unshielded, max.	600 m
Encoder
Connectable encoders
2-wire sensor	Yes
Permissible quiescent current (2-wire sensor), max.	1.5 mA
Isochronous mode
Isochronous operation (application synchronized up to terminal)	No
Interrupts/diagnostics/status information
Alarms
Alarms	No
Diagnostic alarm	No
Hardware interrupt	No
Diagnostic messages
Diagnostic functions	No
Diagnostics indication LED
Status indicator digital input (green)	Yes
Galvanic isolation
Galvanic isolation digital inputs
between the channels	No
between the channels, in groups of	16
between the channels and the backplane bus	Yes; Optocoupler
Permissible potential difference
between different circuits	75 VDC / 60 VAC
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	40-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	260 g

Our company have the compatible cable, named 321-1BL00-0AA0,  can replace Siemens 6ES7321-1BL00-0AA0.

Please find its picture:

You can get it only need USD191.00/pc.    Buy now ====>
It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Here, please find its description of our OEM product:

Any question, please feel free to contact us.

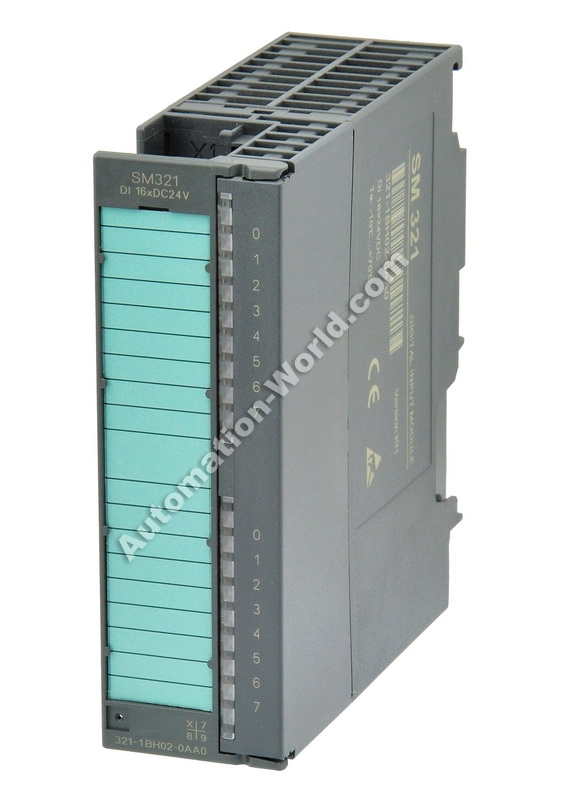

SIEMENS SIMATIC SM7-300 DIGITAL MODULE SM 321, 6ES7321-1BH02-0AA0, SM321, 16DI, DC24V

-	SIMATIC S7-300, DIGITAL INPUT SM 321, OPTICALLY ISOLATED, 16DI, 24 V DC, 1 X 20 PIN
Supply voltage
Load voltage L+
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Input current
from backplane bus 5 V DC, max.	10 mA
Power losses
Power loss, typ.	3.5 W
Digital inputs
Number/binary inputs	16
Input characteristic curve acc. to IEC 61131, Type 1	Yes
Number of simultaneously controllable inputs
horizontal installation
up to 40 °C, max.	16
up to 60 °C, max.	16
vertical installation
up to 40 °C, max.	16
Input voltage
Type of input voltage	DC
Rated value, DC	24 V
for signal “0″	-30 to +5 V
for signal “1″	13 to 30 V
Input current
for signal “1″, typ.	7 mA
Input delay (for rated value of input voltage)
for standard inputs
Parameterizable	No
at “0″ to “1″, min.	1.2 ms
at “0″ to “1″, max.	4.8 ms
Cable length
Cable length, shielded, max.	1000 m
Cable length unshielded, max.	600 m
Encoder
Connectable encoders
2-wire sensor	Yes
Permissible quiescent current (2-wire sensor), max.	1.5 mA
Isochronous mode
Isochronous operation (application synchronized up to terminal)	No
Interrupts/diagnostics/status information
Alarms
Alarms	No
Diagnostic alarm	No
Hardware interrupt	No
Diagnostic messages
Diagnostic functions	No
Diagnostics indication LED
Status indicator digital input (green)	Yes
Galvanic isolation
Galvanic isolation digital inputs
between the channels	No
between the channels, in groups of	16
between the channels and the backplane bus	Yes; Optocoupler
Permissible potential difference
between different circuits	75 VDC / 60 VAC
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	20-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	200 g

Our company have the compatible cable, named 321-1BH02-0AA0,  can replace Siemens 6ES7321-1BH02-0AA0.Please check its picture:

You can get it only need USD95.00/pc.    Buy now ====>
It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

USB/MPI+ V2.0:USB isolated adapter for Siemens S7-300/400 PLC, replace 6ES7 972-0CB20-0XA0

USB/MPI+ V2.0:USB to RS485 isolated adapter for SIEMENS S7-200/300/400 PLC,replace 6ES7 972-0CB20-0XA0

6ES7 972-0CB20-0XA0          SIMATIC S7, PC ADAPTER USB

SIMATIC S7, PC ADAPTER USB F. CONNECTION OF S7-200/300/ 400, C7; WITH USB-CABLE (5M) CAN BE USED UNDER WINXP/VISTA/ WINDOWS 7 32/64BIT

Please read below data sheet of Siemens original 6ES7972-0CB20-0XA0:

-	SIMATIC S7, PC ADAPTER USB F. CONNECTION OF S7-200/300/ 400, C7; WITH USB-CABLE (5M) CAN BE USED UNDER WINXP/VISTA/ WINDOWS 7 32/64BIT
Supply voltage
24 V DC	Yes
Input current
Current consumption, typ.	100 mA
Power
Power consumption, typ.	max. 2.5 W
EMC
Interference immunity against discharge of static electricity
Interference immunity against discharge of static electricity acc. to IEC 61000-4-2	Yes; 6 kV, contact discharge (to IEC 61000-4-2); 8 kV, air discharge (to IEC 61000-4-2)
Interference immunity to cable-borne interference
on the supply lines acc. to IEC 61000-4-4	Yes; 2 kV (to IEC 61000-4-4, burst)
Interference immunity on signal lines acc. to IEC 61000-4-4	Yes; 1 kV (to IEC 61000-4-4; burst; length < 3 m); 2 kV (to IEC 61000-4-4; burst; length > 3 m)
Surge immunity
on the supply lines acc. to IEC 61000-4-5	Yes; 1 kV (to IEC 61000-4-5; surge symm.); 2 kV (to IEC 61000-4-5; surge asymm.)
Immunity against high-frequency electromagnetic fields
Interference immunity against high-frequency radiation acc. to IEC 61000-4-3	Yes; 10 V/m, 80 to 1000 MHz (to IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (to IEC 61000-4-3)
Immunity against conducted interference induced by high-frequency fields
Interference immunity against high frequency current feed acc. to IEC 61000-4-6	Yes; 10 V, 9 kHz to 80 MHz (to IEC 61000-4-6)
Immunity to magnetic field interference
Interference immunity to magnetic fields at 50 Hz	30 A/m; to IEC 61000-4-8
Emission of radio interference acc. to EN 55 022
Interference emission acc. to EN 55022, class B	Yes
Ambient conditions
Operating temperature
Min.	5 °C
max.	40 °C
Permissible temperature change	10 °C/h; Operation: 10 K/h; storage/transport: 20 K/h
Storage/transport temperature
Min.	-20 °C
max.	60 °C
Relative humidity
Operation, min.	5 %
Operation, max.	80 %; At 25 °C (no condensation)
Storage/transport, min.	5 %
Storage/transport, max.	95 %; At 25 °C (no condensation)
Vibrations
Operation, checked according to IEC 60068-2-6	Yes; 10 to 58 Hz: Amplitude 0.075 mm; 58 to 500 Hz: Acceleration 9.8 m/s2
Transport tested checked to IEC 60068-2-6	Yes; (packed) 5 to 9 Hz, amplitude 3.5 mm; 9 to 500 Hz, acceleration 9.8 m/s2
Shock test
Shock test	Tested to DIN IEC 60068-2-2; Operation: 950 m/s2 (10 g), 30 ms, 100 Shocks; Transport (packaged): 250 m/s2 (25 g), 6 ms, 1000 shocks
Dimensions
Width	105 mm
Height	58 mm
Depth	26 mm
Weight
Weight, approx.	100 g

Our company have the compatible cable, named USB/MPI+ V2.0,  can replace Siemens 6ES7 972-0CB20-0XA0.

Below is the picture of our compatible OEM product USB/MPI+ V2.0:

You can get it only need USD90.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

This is USB/MPI+ V2.0 only for Siemens S7-300/400 PLC.

Optoelectronic isolated USB/MPI V2.0,Siemens S7-300/400 PLC Programming adapter cable,3 meters,with communication indicator,can replace Siemens 6ES7 972-0CB20-0XA0,automatically adjust the communication speed from 19.2Kbps to 115.2Kbps for the PC port,automatically adjust the communication speed from 19.2Kbps to 187.5Kbps for the MPI interface.It doesn’t support profibus function.

USB/MPI+ is the optoelectronic isolated adapter for industrial design. There is anti-surging& anti-lightning protection circuit for the USB and RS485 interface. It support hot plug. It‘s suitable for the communication between Siemens S7-300/400 series PLC or other equipments with MPI interface and computer. In particular, it applies to the strong interfere industrial scene and the safeguard in the circuit guarantees the safely running of the system.

USB/MPI+ programming cable simulate USB port as traditional serial port (usually COM3), which enables existing programming software(STEP 7) to communicate through simulated traditional port and PLC devices.

Usage:
USB device drivers should be installed before using USB/MPI+ programming cable. After completing Driver installation, the corresponding COM port for the USB/MPI+ programming cable will be displayed in the  Device Manager of Window. The step next is just to choose this COM port in the programming software and other application software and keep other communication parameters as in the Default settings. And the following steps are exactly the same as in the traditional programming cables with RS232 interfaces. Here are requested to indicate that “USB” option in the local communications interface setting which the software is not support to the programming cable.

If the COM port in the programming software with “*” symbols, such as “* COM3″, it’s shown that the COM port have faults. Quit the software and plug a USB plug or re-install the USB driver.

Please note that Siemens COM port in programming software is up to support the option to COM8.But the ports more than COM8 are able to choose but in fact can not be used!

STEP7 software settings:
Enter the main interface of STEP7 programming software (SIMATIC Manager), click on the “Set PG / PC Interface ” option under “Options” menu into the PG / PC interface settings.

1, Double-click on “PC Adapter (MPI)” to set the parameters of COM port and MPI port. The adapter does not support “PC Adapter (PROFIBUS)” option.

2, Click on “Local Connection” option to set the parameters of COM port, correct choose the COM port in the equipment manager after the driver of USB / MPI + USB has been installed, select the 19200 bps or 38400 bps as the baud rate of COM Communication. USB / MPI + will automatically adapt to the choice of baud rate.

3, Click “MPI” to set the parameters of MPI interface adapter options, baud rate can be set to 187.5 Kbps, or 19.2 Kbps, USB / MPI + adapter will automatically adapt to the MPI port of the PLC baud rate. Other parameters set as default.

4, On-line test can access the points: USB / MPI + connect the MPI port of the S7-300/400PLC with the computer’s USB port. Click on the main menu interface, as shown in a red circle button. If the data in red box is shown as the picture, the on-line test has pasted. As so far, the setting has completely finished. It can do all Operation such as upload, download ,monitoring of the procedures and other operations.

Long-distance communications:

For USB/MPI+, the largest communication distance is up to 1000m at the communication speed of 187.5Kbps. It needs to splice 120ohm terminal resistance between 3 and 8 pin on the RS485 port(DB9 Male) to eliminate signal reflection, and connect 24VDC power between 7 and 2 pin. But requires one PFB-G for each PLC.

Please Note: USB interface cable cannot be extended.

The quality is guaranteed.It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

Any question, please feel free to contact me.

USB/MPI+ V4.0:USB to RS485 isolated adapter for SIEMENS S7-200/300/400 PLC,replace 6ES7 972-0CB20-0XA0

USB/MPI+ V4.0:USB to RS485 isolated adapter for SIEMENS S7-200/300/400 PLC,replace 6ES7 972-0CB20-0XA0

6ES7 972-0CB20-0XA0          SIMATIC S7, PC ADAPTER USB

SIMATIC S7, PC ADAPTER USB F. CONNECTION OF S7-200/300/ 400, C7; WITH USB-CABLE (5M) CAN BE USED UNDER WINXP/VISTA/ WINDOWS 7 32/64BIT

Please read below data sheet of Siemens original 6ES7972-0CB20-0XA0:

-	SIMATIC S7, PC ADAPTER USB F. CONNECTION OF S7-200/300/ 400, C7; WITH USB-CABLE (5M) CAN BE USED UNDER WINXP/VISTA/ WINDOWS 7 32/64BIT
Supply voltage
24 V DC	Yes
Input current
Current consumption, typ.	100 mA
Power
Power consumption, typ.	max. 2.5 W
EMC
Interference immunity against discharge of static electricity
Interference immunity against discharge of static electricity acc. to IEC 61000-4-2	Yes; 6 kV, contact discharge (to IEC 61000-4-2); 8 kV, air discharge (to IEC 61000-4-2)
Interference immunity to cable-borne interference
on the supply lines acc. to IEC 61000-4-4	Yes; 2 kV (to IEC 61000-4-4, burst)
Interference immunity on signal lines acc. to IEC 61000-4-4	Yes; 1 kV (to IEC 61000-4-4; burst; length < 3 m); 2 kV (to IEC 61000-4-4; burst; length > 3 m)
Surge immunity
on the supply lines acc. to IEC 61000-4-5	Yes; 1 kV (to IEC 61000-4-5; surge symm.); 2 kV (to IEC 61000-4-5; surge asymm.)
Immunity against high-frequency electromagnetic fields
Interference immunity against high-frequency radiation acc. to IEC 61000-4-3	Yes; 10 V/m, 80 to 1000 MHz (to IEC 61000-4-3); 10 V/m, 900 MHz, 1.89 GHz, 50% ED (to IEC 61000-4-3)
Immunity against conducted interference induced by high-frequency fields
Interference immunity against high frequency current feed acc. to IEC 61000-4-6	Yes; 10 V, 9 kHz to 80 MHz (to IEC 61000-4-6)
Immunity to magnetic field interference
Interference immunity to magnetic fields at 50 Hz	30 A/m; to IEC 61000-4-8
Emission of radio interference acc. to EN 55 022
Interference emission acc. to EN 55022, class B	Yes
Ambient conditions
Operating temperature
Min.	5 °C
max.	40 °C
Permissible temperature change	10 °C/h; Operation: 10 K/h; storage/transport: 20 K/h
Storage/transport temperature
Min.	-20 °C
max.	60 °C
Relative humidity
Operation, min.	5 %
Operation, max.	80 %; At 25 °C (no condensation)
Storage/transport, min.	5 %
Storage/transport, max.	95 %; At 25 °C (no condensation)
Vibrations
Operation, checked according to IEC 60068-2-6	Yes; 10 to 58 Hz: Amplitude 0.075 mm; 58 to 500 Hz: Acceleration 9.8 m/s2
Transport tested checked to IEC 60068-2-6	Yes; (packed) 5 to 9 Hz, amplitude 3.5 mm; 9 to 500 Hz, acceleration 9.8 m/s2
Shock test
Shock test	Tested to DIN IEC 60068-2-2; Operation: 950 m/s2 (10 g), 30 ms, 100 Shocks; Transport (packaged): 250 m/s2 (25 g), 6 ms, 1000 shocks
Dimensions
Width	105 mm
Height	58 mm
Depth	26 mm
Weight
Weight, approx.	100 g

Our company have the compatible cable, named USB/MPI+ V4.0,  can replace Siemens 6ES7 972-0CB20-0XA0.

Below is the picture of our compatible OEM product USB/MPI+V4.0:

You can get it only need USD99.99/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Introduction

USB/MPI+ V4.0 is the USB to MPI and PPI protocol adapter, support S7-300/400 PLC MPI or S7-200 PLC PPI communication. It’s the same as Siemens PC Adapter USB except that this USB/MPI+ V4.0 doesn’t support profibus communication. Its driver is the Siemens PC_Adapter_USB driver, and choose the USB port, not the COM port.

The working power supply of this cable USB/MPI+ V 4.0 is directly from the USB port, but not the PLC programming interface.

USB/MPI+ V 4.0 is the optoelectronic isolated adapter for industrial design. There is anti-surging& anti-lightning protection circuit for the USB and RS485 interface. It support hot plug. It’s suitable for S7-300/400/200 series PLC. In particular, it applies to the strong interfere industrial scene and the safeguard in the circuit guarantees the safely running of the system.

USB/MPI+ principle and figure structure:

Indicator State

Functions
●    Support STEP7 V5.2 and higher,STEP7 Micro/Win 4.0 and higher
●    Fully compatible with USB V2.0
●    Power supply by USB port(100mA). with overcurrent Protection and Surge Protection
●    High optoelectronic isolation voltage up to 1000VDC
●    The USB port design with surge protection.
●    The RS485 port design with overcurrent protection and lightning
protection:Ipp=100A(10/700us,4KV) .Accord to the standard:ITU-TK20/21,VDE0433. ±15KV ESD Protection.
●    Baud rate of MPI port on PLC: 19.2Kbps,187.5Kbps,1.5Mbps. automatically adjust.
●    Baud rate of PPI port on PLC: 9.6Kbps,19.2Kbps,187.5Kbps.
automatically adjust.
●    Support long distance communication up to 1000m
●    Working temperature -20~+75′C
●    Length 3 meters.Color:black
●    One pc supports one USB programming cable only

About Long Distance Communication
For USB/MPI+ V4.0, the largest communication distance is up to 1000m at the communication speed of 187.5Kbps. It needs to splice 120ohm terminal resistance between 3 and 8 pin on the RS485 port(DB9 Male) to eliminate signal reflection. But requires one PFB-G for each PLC.

Please contact me if you have any question.

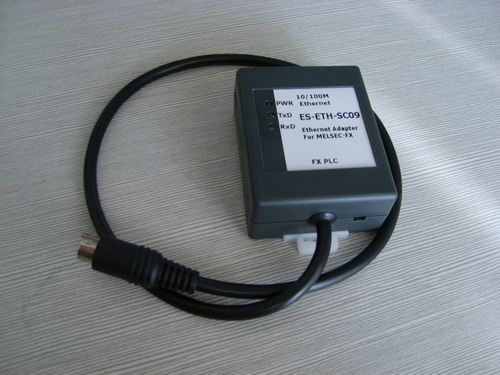

ES-ETH-SC09:Mitsubishi FX series PLC Ethernet adapter

ES-ETH-SC09:Mitsubishi FX series PLC Ethernet adapter

Description:

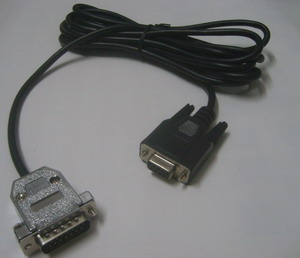

OP programming cable: replace 6XV1 440-2KH32

OP programming cable: replace 6XV1 440-2KH32



You can get it only need USD18.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.



Please feel free to contact me if you have any question.
