6ES7222-1BF22-0XA0       EM222, 8DO, DC 24V

SIMATIC S7-200, DIGITAL OUTPUT EM 222, FOR S7-22X CPU ONLY, 8DQ, 24 V DC,

Please find below data sheet of Siemens original 6ES7 222-1BF22-0XA0

-	SIMATIC S7-200, DIGITAL OUTPUT EM 222, FOR S7-22X CPU ONLY, 8DQ, 24 V DC,
Supply voltage
Load voltage L+
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Input current
from backplane bus 5 V DC, max.	50 mA
Power losses
Power loss, typ.	2 W
Digital outputs
Number/binary outputs	8
Functionality/short-circuit strength	No; to be provided externally (see manual package “Setting up an S7-200″)
Limitation of inductive shutdown voltage to	L+ (-48 V)
Output voltage
for signal “1″, min.	20 V
Output current
for signal “1″ permissible range for 0 to 40 °C, max.	750 mA
for signal “1″ permissible range for 0 to 55 °C, max.	750 mA
for signal “0″ residual current, max.	10 µA
Parallel switching of 2 outputs
for increased power	Yes
Aggregate current of outputs (per group)
all mounting positions
up to 40 °C, max.	3 A
maximum current per conductor/group	3 A
horizontal installation
up to 55 °C, max.	3 A
Relay outputs
Switching capacity of contacts
with inductive load, max.	0.75 A
on lamp load, max.	5 W
Switching frequency/contacts/at ohmic load/maximum	0.75 A
Cable length
Cable length, shielded, max.	500 m
Cable length unshielded, max.	150 m
Galvanic isolation
Galvanic isolation digital outputs
Galvanic isolation digital outputs	Yes; Optocoupler
between the channels, in groups of	4
Connection method
Plug-in I/O terminals	Yes
Dimensions
Width	45 mm
Height	80 mm
Depth	62 mm
Weight
Weight, approx.	150 g

Our company have the compatible cable, named 222-1BF22-0XA0,  can replace Siemens 6ES7 222-1BF22-0XA0.

You can have a look on the picture.

You can get it only need USD50.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Now, please check below discriptions of our compatible OEM product:

Technical specifications
Power consumption
·From +5V DC backplane bus	65mA
·Power loss	2W
Number ofdigital contact	8
Output type	Transistor
Isolation tested for contact	Optocoupler
Rated voltage	24 V DC
Voltage range	20.4~28.8VDC
Rated voltage	0.75A
Lamp loadswitching frequency	5W
Cable length(shielded)	500m
Cable length(unshielded)	150m
Order No	222-1BF22-0XA0
Dimensions(W x H x D)(mm)	46×80×62
weight	150g
Wiring Diagram



6ES7221-1BH22-0XA0          SIMATIC S7-200, DIGITAL INPUT

SIMATIC S7-200, DIGITAL INPUT EM 221, FOR S7-22X CPU ONLY, 16DI, 24V DC, SINK/SOURCE INPUT

Please find below data sheet of Siemens original 6ES7221-1BH22-0XA0

-	SIMATIC S7-200, DIGITAL INPUT EM 221, FOR S7-22X CPU ONLY, 16DI, 24V DC, SINK/SOURCE INPUT
Input current
from backplane bus 5 V DC, max.	70 mA
Power losses
Power loss, typ.	3 W
Digital inputs
Number/binary inputs	16
m/p-reading	Yes
Input characteristic curve acc. to IEC 61131, Type 1	Yes
Input voltage
Type of input voltage	DC
Rated value, DC	24 V
for signal “0″	0 to 5 V
for signal “1″	15 to 30 V
Input current
for signal “1″, typ.	4 mA
Input delay (for rated value of input voltage)
for standard inputs
at “0″ to “1″, max.	4.5 ms
Cable length
Cable length, shielded, max.	500 m
Cable length unshielded, max.	300 m
Encoder
Connectable encoders
2-wire sensor	Yes
Permissible quiescent current (2-wire sensor), max.	1 mA
Galvanic isolation
Galvanic isolation digital inputs
Galvanic isolation digital inputs	Yes; Optocoupler
between the channels, in groups of	4
Isolation
Isolation checked with	500 V AC for 1 min.
Connection method
Plug-in I/O terminals	Yes
Dimensions
Width	71.2 mm
Height	80 mm
Depth	62 mm
Weight
Weight, approx.	160 g

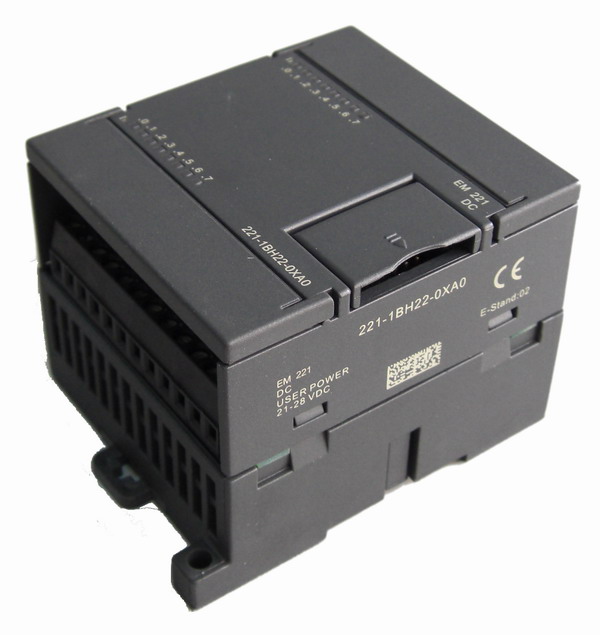

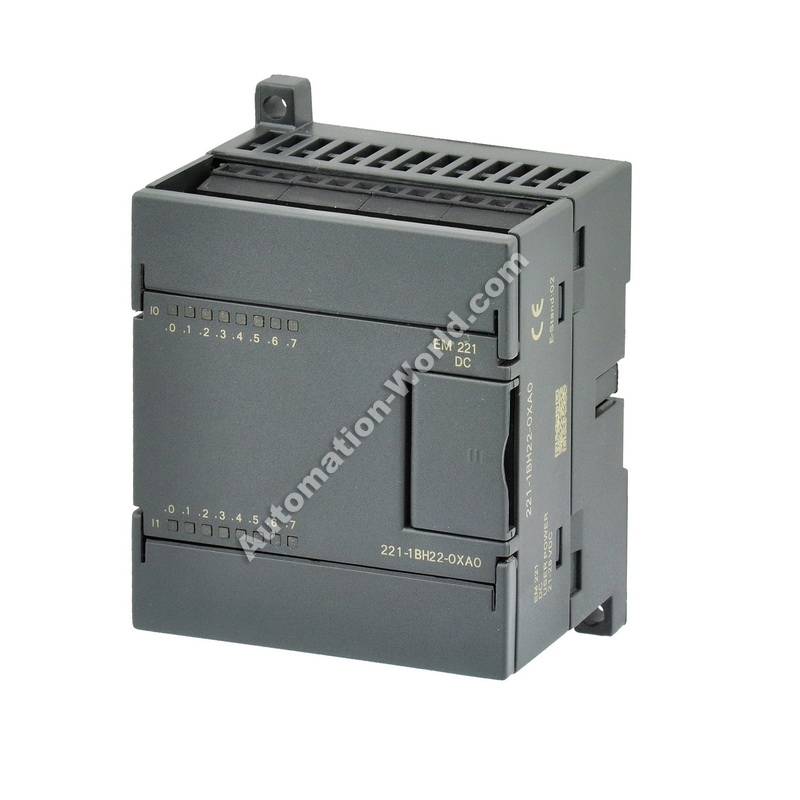

Our company have the compatible cable, named 221-1BH22-0XA0,  can replace Siemens 6ES7 221-1BH22-0XA0.You can have a look on the picture.

You can get it only need USD64.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Here, please find below our discriptions of our compatible OEM product.

Model	EM221  16 inputs
From bus current consumption	85mA
Power loss	3W
Number of digital inputs	16
Signal input type·	PNP/NPN
Input voltage range	24VDC,4mA
Maximum input voltage	30V DC
Surge voltage	35V DC,0.5s
Logic 0 signal	0~5V DC
Logic 1 signal	15~30V DC
Input delay(max)	4.5ms
Optical isolation(Galvanic)  (Field Side to Logic)	500 V AC for 1 minute
Premissible leakage current(Bero)	1mA
Cable Length	500m(Shielded )300m(Unshielded)
Dimensions(W x H x D)(mm)	71.2×80×62
Order Number	221-1BH22-0XA0





6ES7153-1AA03-0XB0     ET200M, INTERFACE MODULE IM153-1

SIMATIC DP, INTERFACE IM 153-1, FOR ET 200M, FOR MAX. 8 S7-300 MODULES

Please find below data sheet of Siemens 6ES7153-1AA03-0XB0:

-	SIMATIC DP, INTERFACE IM 153-1, FOR ET 200M, FOR MAX. 8 S7-300 MODULES
General information
Vendor identification (VendorID)	801Dh
Supply voltage
24 V DC	Yes
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
permissible range (ripple included), lower limit (DC)	20.4 V
permissible range (ripple included), upper limit (DC)	28.8 V
External protection for supply cables (recommendation)	not necessary
Mains buffering
Mains/voltage failure stored energy time	5 ms
Input current
Current consumption, max.	350 mA; at 24 V DC
Rated value at 24 V DC	625 mA
Inrush current, typ.	2.5 A
I²t	0.1 A²·s
Output voltage
Rated value, 5 V DC	Yes
Output current
for backplane bus (5 V DC), max.	1 A
Power losses
Power loss, typ.	3 W
Address area
Addressing volume
Outputs	128 byte
Inputs	128 byte
Hardware configuration
Number of modules per DP slave interface, max.	8
Interfaces
Interface physics, RS 485	Yes
Interface physics, FOC	No
PROFIBUS DP
Node addresses	1 to 125 permitted
Automatic detection of transmission speed	Yes
PROFIBUS DP, output current, max.	90 mA
Transmission procedure	RS 485
Transmission rate, max.	12 Mbit/s
SYNC capability	Yes
FREECE capability	Yes
Direct data exchange (slave-to-slave communication)	Yes; Sender
PROFIBUS DP	9-pin sub D socket
1st interface
DP slave
GSD file	(for DPV1) SIEM801D.GSD; SI01801D.GSG
Automatic baud rate search	Yes
Communication functions
Bus protocol/transmission protocol	PROFIBUS DP to EN 50170
Isolation
Isolation checked with	Isolation voltage 500 V
Degree and class of protection
IP20	Yes
Ambient conditions
Operating temperature
Min.	0 °C
max.	60 °C
Air pressure
Operating altitude above sea level, max.	3000 m
Dimensions
Width	40 mm
Height	125 mm
Depth	117 mm
Weight

Our company have the compatible cable, named 153-1AA03-0XB0,  can replace Siemens 6ES7 153-1AA03-0XB0.You can have a look on the picture.

You can get it only need USD168.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Please find below our compatible OEM product of 153-1AA03-0XB0:

Model	IM 153 PROFIBUS-DP
Product  Description	·Profibus-DP interface module to connect remote I/O modules with Profibus protocol·Eight  300 expasion modules can be used each IM 153-1
Modules characteristic
Protocol	PROFIBUS-DP
Baud rate,Max	12Mbps Automatic adapt
Address space, Max	128bits input/128bits output
Expansion modules,Max	8
Isolation voltage	500V
Work voltage	24V DC
Current consumption(24V DC)	625mA
Degree of protection	IP20
Operating temprature	-10℃~+70℃
Dimensions(W x H x D)(mm)	40×125×120
Order Number	153-1AA03-0XB0



6ES7332-5HF00-0AB0                    SIMATIC S7-300, ANALOG OUTPUT

SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 8 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 40 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS

Please find below data sheet of Siemens original 6ES7 332-5HF00-0AB0

-	SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 8 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 40 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
Supply voltage
Load voltage L+
Rated value (DC)	24 V
Input current
from load voltage L+ (without load), max.	340 mA
from backplane bus 5 V DC, max.	100 mA
Power losses
Power loss, typ.	6 W
Analog outputs
Number of analog outputs	8
Voltage output, short-circuit protection	Yes
Voltage output, short-circuit current, max.	25 mA
Current output, no-load voltage, max.	18 V
Output ranges, voltage
0 to 10 V	Yes
1 to 5 V	Yes
-10 to +10 V	Yes
Output ranges, current
0 to 20 mA	Yes
-20 to +20 mA	Yes
4 to 20 mA	Yes
Load impedance (in rated range of output)
with voltage outputs, min.	1 kΩ
with voltage outputs, capacitive load, max.	1 µF
with current outputs, max.	500 Ω
with current outputs, inductive load, max.	10 mH
Cable length
Cable length, shielded, max.	200 m
Analog value creation
Integrations and conversion time/ resolution per channel
Resolution with overrange (bit including sign), max.	12 bit; +/-10 V, +/-20 mA, 4 to 20 mA, 1 to 5 V: 11 bits + sign; 0 to 10 V, 0 to 20 mA: 12 bits
Conversion time (per channel)	0.8 ms
Settling time
for resistive load	0.2 ms
for capacitive load	3.3 ms
for inductive load	0.5 ms; 0.5 ms (1 mH); 3.3 ms (10 mH)
Errors/accuracies
Operational limit in overall temperature range
Voltage, relative to output area	+/- 0,5 %
Current, relative to output area	+/- 0,6 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to output area	+/- 0,4 %
Current, relative to output area	+/- 0,5 %
Interrupts/diagnostics/status information
Substitute values connectable	Yes; Parameterizable
Alarms
Diagnostic alarm	Yes; Parameterizable
Diagnostic messages
Diagnostic information readable	Yes
Diagnostics	Yes
Diagnostics indication LED
Group error SF (red)	Yes
Galvanic isolation
Galvanic isolation analog outputs
between the channels and the backplane bus	Yes
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	40-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	272 g

Our company have the compatible cable, named 332-5HF00-0AB0,  can replace Siemens 6ES7 332-5HF00-0AB0.You can have a look on the picture.

You can get it only need USD554.60/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Please check below discription of our compatible OEM 332-5HF00-0AB0

Model	SM3328AO
Product  Description	8AO; Resolution:12bits; High-accuracy
Power consumption
·From bus current consumption	100mA
·From L+	70mA
·Power loss	6W
Number of analog outputs	8
Load voltage+rated value	24V
Shielded cable length,Max	200m
Voltage output,Max,short circuit Current	Yes
Voltage output,Short circuit current(Max)	25mA
Voltage output,Open-circuit current,Max	18V
Load impedance
·Voltage outputs,Min	1KΩ
·current outputs,Max	500Ω
Output ranges
·voltage	±10V,0~10V,1~5V
·current	±20mA,0~20mA,4~20mA
D/A resolution	12bit
conversion time(per channel)	Max:0.8ms
Setting time
·Resistive loads	0.1ms
·Capacitive loads	3.3ms
·Inductive loads	0.5ms
Output cross talk	>40dB
Tolerance(Over entire temperature range)
·Voltage output	±0.5%
·Current output	±0.6%
Diagnostic interrupt	None
Group fault error	Red LED
Isolution tested for contact
·Between channels and backplane bus	Yes
·Between channels and load voltage L+	Yes
Front connector	40-pin
Dimensions(W x H x D)(mm)	40×125×120
Order Number	332-5HF00-0AB0

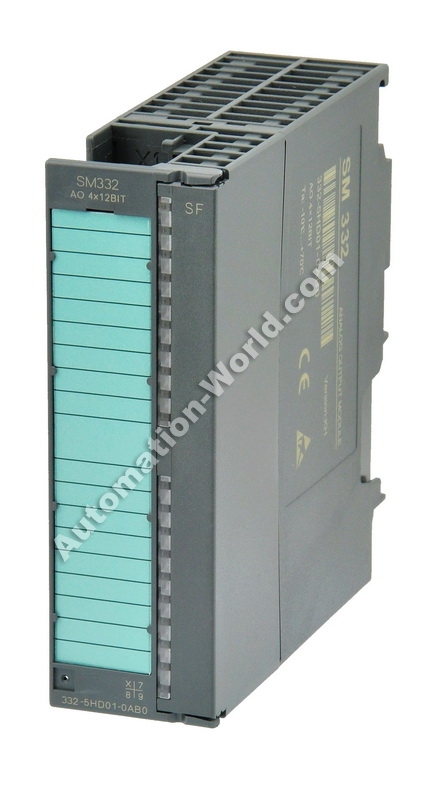

6ES7332-5HD01-0AB0                   SIMATIC S7-300, ANALOG OUTPUT

SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 4 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 20 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS

Please check below data sheet of Siemens original 6ES7 332-5HD01-0AB0

-	SIMATIC S7-300, ANALOG OUTPUT SM 332, OPTICALLY ISOLATED, 4 AO, U/I; DIAGNOSTICS; RESOLUTION 11/12 BITS, 20 PIN, REMOVE/INSERT W. ACTIVE, BACKPLANE BUS
Supply voltage
Load voltage L+
Rated value (DC)	24 V
Input current
from load voltage L+ (without load), max.	240 mA
from backplane bus 5 V DC, max.	60 mA
Power losses
Power loss, typ.	3 W
Analog outputs
Number of analog outputs	4
Voltage output, short-circuit protection	Yes
Voltage output, short-circuit current, max.	25 mA
Current output, no-load voltage, max.	18 V
Output ranges, voltage
0 to 10 V	Yes
1 to 5 V	Yes
-10 to +10 V	Yes
Output ranges, current
0 to 20 mA	Yes
-20 to +20 mA	Yes
4 to 20 mA	Yes
Load impedance (in rated range of output)
with voltage outputs, min.	1 kΩ
with voltage outputs, capacitive load, max.	1 µF
with current outputs, max.	500 Ω
with current outputs, inductive load, max.	10 mH
Cable length
Cable length, shielded, max.	200 m
Analog value creation
Integrations and conversion time/ resolution per channel
Resolution with overrange (bit including sign), max.	12 bit; +/-10 V, +/-20 mA, 4 to 20 mA, 1 to 5 V: 11 bits + sign; 0 to 10 V, 0 to 20 mA: 12 bits
Conversion time (per channel)	0.8 ms
Settling time
for resistive load	0.2 ms
for capacitive load	3.3 ms
for inductive load	0.5 ms; 0.5 ms (1 mH); 3.3 ms (10 mH)
Errors/accuracies
Operational limit in overall temperature range
Voltage, relative to output area	+/- 0,5 %
Current, relative to output area	+/- 0,6 %
Basic error limit (operational limit at 25 °C)
Voltage, relative to output area	+/- 0,4 %
Current, relative to output area	+/- 0,5 %
Interrupts/diagnostics/status information
Substitute values connectable	Yes; Parameterizable
Alarms
Diagnostic alarm	Yes; Parameterizable
Diagnostic messages
Diagnostic information readable	Yes
Diagnostics	Yes
Diagnostics indication LED
Group error SF (red)	Yes
Galvanic isolation
Galvanic isolation analog outputs
between the channels and the backplane bus	Yes
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	20-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	220 g

Our company have the compatible cable, named 332-5HD01-0AB0,  can replace Siemens 6ES7 332-5HD01-0AB0.You can have a look on the picture.

You can get it only need USD310.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Now, please check below discriptions of our compatible OEM 332-5HD01-0AB0

Model	SM332 4AO
Product  Description	4AO;Resolution:12bits; High-accuracy
Power consumption
·From bus current consumption	40mA
·From L+	40mA
·Power loss	3W
Number of analog outputs	4
Load voltage+rated value	24V
Shielded cable length,Max	200m
Voltage output,Max,short circuit Current	Yes
Voltage output,Short circuit current(Max)	25mA
Voltage output,Open-circuit current,Max	18V
Load impedance
·Voltage outputs,Min	1KΩ
·current outputs,Max	500Ω
Output ranges
·voltage	±10V,0~10V,1~5V
·current	±20mA,0~20mA,4~20mA
D/A resolution	12bit
conversion time(per channel)	Max:0.8ms
Setting time
·Resistive loads	0.1ms
·Capacitive loads	3.3ms
·Inductive loads	0.5ms
Output cross talk	>40dB
Tolerance(Over entire temperature range)
·Voltage output	±0.5%
·Current output	±0.6%
Diagnostic interrupt	None
Group fault error	Red LED
Isolution tested for contact
·Between channels and backplane bus	Yes
·Between channels and load voltage L+	Yes
Front connector	20-pin
Dimensions(W x H x D)(mm)	40×125×120
Order Number	332-5HD01-0AB0

6ES7331-7PF11-0AB0                      SIMATIC S7-300, ANALOG INPUT

SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATATED, 8 AI THERMOCOUPLE, TYPE B, E, J, K, L, N, R, S, T TXK/TXK(L) ACCORDING GOST 16 BIT, 50 MS, 1 X 40 PIN

Please find below data sheet of Siemens original 6ES7331-7PF11-0AB0  :

-	SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATATED, 8 AI THERMOCOUPLE, TYPE B, E, J, K, L, N, R, S, T TXK/TXK(L) ACCORDING GOST 16 BIT, 50 MS, 1 X 40 PIN
Supply voltage
Load voltage L+
Rated value (DC)	24 V
Reverse polarity protection	Yes
Input current
from load voltage L+ (without load), max.	200 mA
from backplane bus 5 V DC, max.	100 mA
Power losses
Power loss, typ.	3 W
Analog inputs
Number of analog inputs	8
permissible input voltage for voltage input (destruction limit), max.	75 V; 20 V DC permanent, 75 V DC for max. 1 s (duty factor 1:20)
Input ranges
Voltage	No
Current	No
Thermocouple	Yes
Resistance thermometer	No
Resistance	No
Input ranges (rated values), voltages
0 to +10 V	No
1 to 5 V	No
1 to 10 V	No
-1 V to +1 V	No
-10 V to +10 V	No
-2.5 V to +2.5 V	No
-250 mV to +250 mV	No
-5 V to +5 V	No
-50 mV to +50 mV	No
-500 mV to +500 mV	No
-80 mV to +80 mV	No
Input ranges (rated values), currents
0 to 20 mA	No
-10 to +10 mA	No
-20 to +20 mA	No
-3.2 to +3.2 mA	No
4 to 20 mA	No
Input ranges (rated values), thermoelements
Type B	Yes
Type E	Yes
Type J	Yes
Type K	Yes
Type L	Yes
Type N	Yes
Type R	Yes
Type S	Yes
Type T	Yes
Type U	Yes
Type TXK/TXK(L) to GOST	Yes
Input ranges (rated values), resistance thermometers
Cu 10	No
Ni 100	No
Ni 1000	No
LG-Ni 1000	No
Ni 120	No
Ni 200	No
Ni 500	No
Pt 100	No
Pt 1000	No
Pt 200	No
Pt 500	No
Input ranges (rated values), resistors
0 to 150 ohms	No
0 to 300 ohms	No
0 to 600 ohms	No
0 to 6000 ohms	No
Thermocouple (TC)
for thermocouples	Type B, E, J, K, L, N, R, S. T, U, C
Temperature compensation
Parameterizable	Yes
internal temperature compensation	Yes
external temperature compensation with compensations socket	Yes
external temperature compensation with Pt100	Yes
Characteristic linearization
Parameterizable	Yes
Cable length
Cable length, shielded, max.	100 m
Analog value creation
Measurement principle	integrating
Integrations and conversion time/ resolution per channel
Resolution with overrange (bit including sign), max.	16 bit; Two’s complement
Integration time, parameterizable	Yes
Basic conversion time, ms	Up to 4 channels: 10 ms per module, 5 channels upwards: 190 ms per module
Interference voltage suppression for interference frequency f1 in Hz	400 / 60 / 50 Hz
Errors/accuracies
Operational limit in overall temperature range
Voltage, relative to input area	+/- 1 K
Isochronous mode
Isochronous operation (application synchronized up to terminal)	No
Interrupts/diagnostics/status information
Alarms
Diagnostic alarm	Yes; Parameterizable per group
Limit value alarm	Yes; Parameterizable
Diagnostic messages
Diagnostic functions	Yes; Parameterizable
Diagnostic information readable	Yes
Diagnostics	Yes
Diagnostics indication LED
Group error SF (red)	Yes
Galvanic isolation
Galvanic isolation analog inputs
between the channels	No
between the channels, in groups of	2
between the channels and the backplane bus	Yes
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	40-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	272 g

Our company have the compatible cable, named 331-7PF11-0AB0,  can replace Siemens 6ES7331-7PF11-0AB0.

You can have a look on the picture.

You can get it only need USD440.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Please find below discription of our compatible OEM 331-7PF11-0AB0:

Model	SM331 8AI Thermocouple
Product  Description	8AI; Thermocouple temperature measurement modules; Input voltage range:±150mV
Power consumption
·Rate value	24V DC
·From backplane bus current consumption	100mA
·From L+	200mA
·Power loss	3W
The power of transmitter
·Supply current	/
·short-circuit protection	/
Number of analog inputs	8
Cable Length (Shielded)	Max:100m
Input type and input range
·voltage	±150mV(-32000~+32000)
·current(4wire)
·current(2wire)	/
·tesistance
·thermocouple	Type:T,E,J,K,N,R,S
·RTD	/
A/D resolution	16bits
Basic conversion time(per channel)	190ms
Interference frequency suppression	400/50/60Hz
Tolerance(Over entire temperature range)
·Voltage	±0.6%
·Current	/
·resistance	/
·temperature	±1℃
Interrupts
Diagnostic interrupt	Per group Yes,Configurable
Limit-value interrupt	Yes,Configurable
Isolation tested for contact
·Between channels	Yes
·Between channels and backplane bu	Yes
Front connector	40-pin
Dimensions(W x H x D)(mm)	40×125×120
Order Number	331-7PF11-0AB0

6ES7331-7PF01-0AB0                       SIMATIC S7-300, ANALOG INPUT

SIMATIC S7-300, ANALOG INPUT SM 331, OPT. ISOL.,2/3/4 WIRE, 8AI, RESISTANCE, PT100/200/1000 NI100/120/200/500/1000, CU10, PLUS CHARACTERISTICS ACCORDING TO GOST STANDARD 16 (INTERN 24) BIT, 50MS, 1 X 40 PIN

Please find below data sheet of Siemens original 6ES7331-7PF01-0AB0:

Our company have the compatible cable, named 331-7PF01-0AB0,  can replace Siemens 6ES7 331-7PF01-0AB0.

You can have a look on the picture.

You can get it only need USD440.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Model	SM331 8AI RTD
Product  Description	8AI; RTD temperature measurement modules; stable
Power consumption
·Rate value	24V DC
·From backplane bus current consumption	50mA
·From L+	40mA
·Power loss	1W
The power of transmitter
·Supply current	/
·short-circuit protection	/
Number of analog inputs	8
Cable Length (Shielded)	Max:200m
Input type and input range
·voltage	/
·current(4wire)	/
·current(2wire)	/
·tesistance	150Ω, 300Ω, 600Ω,
·thermocouple	/
·RTD	Pt10、 Pt50、Pt100, Pt200、 Pt500、 Pt1000、 Ni100、 Ni120 、Ni200,Ni500 、 Ni1000 、Cu10(9.035) 、 Cu50、Cu100
A/D resolution	16bits
Basic conversion time(per channel)	190ms
Interference frequency suppression	400/50/60Hz
Tolerance(Over entire temperature range)
·Voltage	/
·Current	/
·resistance	±0.1%
·temperature	±1℃
Interrupts
Diagnostic interrupt	Per group Yes,Configurable
Limit-value interrupt	Yes,Configurable
Isolation tested for contact
·Between channels	Yes
·Between channels and backplane bu	Yes
Front connector	40-pin
Dimensions(W x H x D)(mm)	40×125×120
Order Number	331-7PF01-0AB0

6ES7331-7KF02-0AB0                SM331, 8AI, 9/12/14BIT

SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8AI, RESOLUTION 9/12/14 BITS, U/I/THERMOCOUPLE/RESISTANCE INTERRUPT, DIAGNOSTICS; 1X20PIN REMOVE/INSERT W. BACKPLANE BUS

Please find below data sheet of Siemens original 6ES7331-7KF02-0AB0:

-	SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8AI, RESOLUTION 9/12/14 BITS, U/I/THERMOCOUPLE/RESISTANCE INTERRUPT, DIAGNOSTICS; 1X20PIN REMOVE/INSERT W. BACKPLANE BUS
Supply voltage
Load voltage L+
Rated value (DC)	24 V
Reverse polarity protection	Yes
Input current
from load voltage L+ (without load), max.	200 mA
from backplane bus 5 V DC, max.	50 mA
Power losses
Power loss, typ.	1 W
Analog inputs
Number of analog inputs	8
Number of analog inputs for resistance measurement	4
permissible input voltage for voltage input (destruction limit), max.	20 V; continuous; 75 V for max. 1 s (mark to space ratio 1:20)
permissible input current for current input (destruction limit), max.	40 mA
Input ranges
Voltage	Yes
Current	Yes
Thermocouple	Yes
Resistance thermometer	Yes
Resistance	Yes
Input ranges (rated values), voltages
0 to +10 V	No
1 to 5 V	Yes
Input resistance (1 to 5 V)	100 kΩ
1 to 10 V	No
-1 V to +1 V	Yes
Input resistance (-1 V to +1 V)	10 MΩ
-10 V to +10 V	Yes
Input resistance (-10 V to +10 V)	100 kΩ
-2.5 V to +2.5 V	Yes
Input resistance (-2.5 V to +2.5 V)	100 kΩ
-250 mV to +250 mV	Yes
Input resistance (-250 mV to +250 mV)	10 MΩ
-5 V to +5 V	Yes
Input resistance (-5 V to +5 V)	100 kΩ
-50 mV to +50 mV	No
-500 mV to +500 mV	Yes
Input resistance (-500 mV to +500 mV)	10 MΩ
-80 mV to +80 mV	Yes
Input resistance (-80 mV to +80 mV)	10 MΩ
Input ranges (rated values), currents
0 to 20 mA	Yes
Input resistance (0 to 20 mA)	25 Ω
-10 to +10 mA	Yes
Input resistance (-10 to +10 mA)	25 Ω
-20 to +20 mA	Yes
Input resistance (-20 to +20 mA)	25 Ω
-3.2 to +3.2 mA	Yes
Input resistance (-3.2 to +3.2 mA)	25 Ω
4 to 20 mA	Yes
Input resistance (4 to 20 mA)	25 Ω
Input ranges (rated values), thermoelements
Type B	No
Type E	Yes
Input resistance (Type E)	10 MΩ
Type J	Yes
Input resistance (type J)	10 MΩ
Type K	Yes
Input resistance (Type K)	10 MΩ
Type L	Yes
Input resistance (Type L)	10 MΩ
Type N	Yes
Input resistance (Type N)	10 MΩ
Type R	No
Type S	No
Type T	No
Type U	No
Type TXK/TXK(L) to GOST	No
Input ranges (rated values), resistance thermometers
Cu 10	No
Ni 100	Yes; Standard
Input resistance (Ni 100)	10 MΩ
Ni 1000	No
LG-Ni 1000	No
Ni 120	No
Ni 200	No
Ni 500	No
Pt 100	Yes; Standard
Input resistance (Pt 100)	10 MΩ
Pt 1000	No
Pt 200	No
Pt 500	No
Input ranges (rated values), resistors
0 to 150 ohms	Yes
Input resistance (0 to 150 ohms)	10 MΩ
0 to 300 ohms	Yes
Input resistance (0 to 300 ohms)	10 MΩ
0 to 600 ohms	Yes
Input resistance (0 to 600 ohms)	10 MΩ
0 to 6000 ohms	No
Thermocouple (TC)
for thermocouples	Type E, J, K, L, N
Temperature compensation
Parameterizable	Yes
internal temperature compensation	Yes
external temperature compensation with compensations socket	Yes
Resistance thermometer (RTD)
Characteristic linearization
for resistance thermometer	Pt100 (standard, climatic range), Ni100 (standard, climatic range)
Characteristic linearization
Parameterizable	Yes
Cable length
Cable length, shielded, max.	200 m; 50 m at 80 mV and thermocouples
Analog value creation
Measurement principle	integrating
Integrations and conversion time/ resolution per channel
Resolution with overrange (bit including sign), max.	15 bit; Unipolar: 9/12/12/14 bits; bipolar: 9 bits + sign/12 bits + sign/12 bits + sign/14 bits + sign
Integration time, parameterizable	Yes; 2.5/ 16.67/ 20/ 100 ms
Basic conversion time, ms	3 / 17 / 22 /102 ms
Interference voltage suppression for interference frequency f1 in Hz	400 / 60 / 50 / 10 Hz
Encoder
Connection of signal encoders
for current measurement as 2-wire transducer	Yes
for current measurement as 4-wire transducer	Yes
for resistance measurement with 2-conductor connection	Yes
for resistance measurement with 3-conductor connection	Yes
for resistance measurement with 4-conductor connection	Yes
Errors/accuracies
Operational limit in overall temperature range
Voltage, relative to input area	+/- 1 %; +/-1% (80 mV); +/-0.6% (250 to 1000 mV); +/-0.8% (2.5 to 10 V)
Current, relative to input area	+/- 0,7 %; From 3.2 to 20 mA
Impedance, relative to input area	+/- 0,7 %; 150, 300, 600 Ohm
Resistance-type thermometer, relative to input area	+/- 0,7 %; +/-0.7% (Pt100/ Ni100); +/-0.8% (Pt100 climate)
Basic error limit (operational limit at 25 °C)
Voltage, relative to input area	+/- 0,6 %; +/-0.4% (250 to 1000 mV); +/-0.6 % (2.5 to 10 mV); +/-0.7 % (80 mV)
Current, relative to input area	+/- 0,5 %; 3.2 to 20 mA
Impedance, relative to input area	+/- 0,5 %; 150, 300, 600 Ohm
Resistance-type thermometer, relative to input area	+/- 0,6 %; +/-0.5% (Pt100/ Ni100); +/-0.6% (Pt100 climate)
Isochronous mode
Isochronous operation (application synchronized up to terminal)	No
Interrupts/diagnostics/status information
Alarms
Diagnostic alarm	Yes; Parameterizable, channels 0 and 2
Limit value alarm	Yes; Parameterizable
Diagnostic messages
Diagnostic functions	Yes; Parameterizable
Diagnostic information readable	Yes
Diagnostics	Yes
Diagnostics indication LED
Group error SF (red)	Yes
Galvanic isolation
Galvanic isolation analog inputs
between the channels	No
between the channels and the backplane bus	Yes
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	20-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	250 g

Our company have the compatible cable, named 331-7KF02-0AB0,  can replace Siemens 6ES7331-7KF02-0AB0.

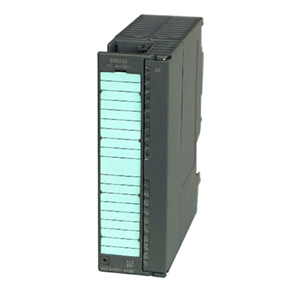

You can have a look on the picture.

You can get it only need USD367.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Model	SM331 8AI
Product  Description	8AI; Full-function temperature measurement modules; Resolution:16bits; Short-circuit protection ;High immunity;stable
Power consumption
·Rate value	24V DC
·From backplane bus current consumption	100mA
·From L+	25mA
·Power loss	1W
The power of transmitter
·Supply current	Per channel (Max):60mA
·short-circuit protection	Yes
Number of analog inputs	8
Cable Length (Shielded)	200m Max.For 80mV:50m
Input type and input range
·voltage	±80mV, ±250mV, ±500mV,±1V, ±2.5V ±5V,1~5V, ±10V
·current(4wire)	±3.2mA, ±10mA, ±20mA, 4~20mA
·current(2wire)	4~20mA
·tesistance	600Ω, 300Ω, 150Ω,
·thermocouple	K,J,N,E,L
·RTD	Pt100,Ni100
A/D resolution	16bits
Basic conversion time(per channel)	0.5ms/12.5ms/25ms/50ms
Interference frequency suppression	400/60/50/10Hz
Tolerance(Over entire temperature range)
·Voltage	±0.6%
·Current	±0.6%
·resistance	±0.6%
·temperature	±1℃
Interrupts
Diagnostic interrupt	Per group Yes,Configurable
Limit-value interrupt	Yes,Configurable
Isolation tested for contact
·Between channels	None
·Between channels and backplane bu	Yes
Front connector	20-pin
Dimensions(W x H x D)(mm)	40×125×120
Order Number	331-7KF02-0AB0

6ES7331-1KF01-0AB0       SM331, 8AI, 13BIT

SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AI, 13 BIT RESOLUTION, U/I/RESISTANCE/PT100, NI100, NI1000, LG-NI1000, 66 MS MODULE UPDATE, 1 X 40 PIN

Here, below is the data sheet of Siemens original 6ES7331-1KF01-0AB0 :

	SIMATIC S7-300, ANALOG INPUT SM 331, OPTICALLY ISOLATED, 8 AI, 13 BIT RESOLUTION, U/I/RESISTANCE/PT100, NI100, NI1000, LG-NI1000, 66 MS MODULE UPDATE, 1 X 40 PIN
Input current
from backplane bus 5 V DC, max.	90 mA
Power losses
Power loss, typ.	0.4 W
Analog inputs
Number of analog inputs	8
Number of analog inputs for resistance measurement	8
permissible input voltage for voltage input (destruction limit), max.	30 V; 12 V continuous, 30 V for max. 1 s
permissible input current for current input (destruction limit), max.	40 mA
Input ranges
Voltage	Yes
Current	Yes
Thermocouple	No
Resistance thermometer	Yes
Resistance	Yes
Input ranges (rated values), voltages
0 to +10 V	Yes
Input resistance (0 to 10 V)	100 kΩ
1 to 5 V	Yes
Input resistance (1 to 5 V)	100 kΩ
1 to 10 V	No
-1 V to +1 V	Yes
Input resistance (-1 V to +1 V)	100 kΩ
-10 V to +10 V	Yes
Input resistance (-10 V to +10 V)	100 kΩ
-2.5 V to +2.5 V	No
-250 mV to +250 mV	No
-5 V to +5 V	Yes
Input resistance (-5 V to +5 V)	100 kΩ
-50 mV to +50 mV	Yes
Input resistance (-50 mV to +50 mV)	100 kΩ
-500 mV to +500 mV	Yes
Input resistance (-500 mV to +500 mV)	100 kΩ
-80 mV to +80 mV	No
Input ranges (rated values), currents
0 to 20 mA	Yes
Input resistance (0 to 20 mA)	50 Ω
-10 to +10 mA	No
-20 to +20 mA	Yes
Input resistance (-20 to +20 mA)	50 Ω
-3.2 to +3.2 mA	No
4 to 20 mA	Yes
Input resistance (4 to 20 mA)	50 Ω
Input ranges (rated values), thermoelements
Type B	No
Type E	No
Type J	No
Type K	No
Type L	No
Type N	No
Type R	No
Type S	No
Type T	No
Type U	No
Type TXK/TXK(L) to GOST	No
Input ranges (rated values), resistance thermometers
Cu 10	No
Ni 100	Yes; Standard/climate
Input resistance (Ni 100)	100 MΩ
Ni 1000	Yes
Input resistance (Ni 1000)	100 MΩ
LG-Ni 1000	Yes; Standard/climate
Input resistance (LG-Ni 1000)	100 MΩ
Ni 120	No
Ni 200	No
Ni 500	No
Pt 100	Yes; Standard/climate
Input resistance (Pt 100)	100 MΩ
Pt 1000	No
Pt 200	No
Pt 500	No
Input ranges (rated values), resistors
0 to 150 ohms	No
0 to 300 ohms	No
0 to 600 ohms	Yes
Input resistance (0 to 600 ohms)	100 MΩ
0 to 6000 ohms	Yes
Input resistance (0 to 6000 ohms)	100 MΩ
Resistance thermometer (RTD)
Characteristic linearization
for resistance thermometer	yes; Pt100 standard/air con.; Ni100 standard/air con.; Ni1000 standard/air con.; LG-Ni1000 standard/air con.
Characteristic linearization
Parameterizable	Yes
Cable length
Cable length, shielded, max.	200 m; max. 50 m at 50 mV
Analog value creation
Measurement principle	integrating
Integrations and conversion time/ resolution per channel
Resolution with overrange (bit including sign), max.	13 bit
Integration time, parameterizable	Yes; 60 / 50 ms
Basic conversion time, ms	66 / 55 ms
Interference voltage suppression for interference frequency f1 in Hz	50 / 60 Hz
Encoder
Connection of signal encoders
for current measurement as 2-wire transducer	Yes; with external supply
for current measurement as 4-wire transducer	Yes
for resistance measurement with 2-conductor connection	Yes
for resistance measurement with 3-conductor connection	Yes
for resistance measurement with 4-conductor connection	Yes
Errors/accuracies
Operational limit in overall temperature range
Voltage, relative to input area	+/- 0,6 %; +/-0.6% (+/-5 V, 10 V, 1 to 5 V, 0 to 10 V); +/-0.5% (+/-50 mV, 500 mV, 1 V)
Current, relative to input area	+/- 0,5 %; +/-20 mA, 0 to 20 mA, 4 to 20 mA
Impedance, relative to input area	+/- 0,5 %; 0 to 6 kohms, 0 to 600 kohms
Resistance-type thermometer, relative to input area	1 Kelvin (Pt100, Ni100, climatic; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, climatic); 1.2 Kelvin (Pt100, Ni100, standard)
Basic error limit (operational limit at 25 °C)
Voltage, relative to input area	+/- 0,4 %; 0.4% (+/-5 V, 10 V, 1 to 5 V, 0 to 10 V); 0.3% (+/-50 mV, 500 mV, 1 V)
Current, relative to input area	+/- 0,3 %; +/-20 mA, 0 to 20 mA, 4 to 20 mA
Impedance, relative to input area	+/- 0,3 %; 0 to 6 kohms, 0 to 600 kohms
Resistance-type thermometer, relative to input area	1 Kelvin (Pt100, Ni100, standard); 0.8 Kelvin (Pt100, Ni100, climatic; Ni1000, LG-Ni1000, standard; Ni1000, LG-Ni1000, climatic)
Isochronous mode
Isochronous operation (application synchronized up to terminal)	No
Interrupts/diagnostics/status information
Alarms
Diagnostic alarm	No
Limit value alarm	No
Diagnostic messages
Diagnostic functions	No
Diagnostic information readable	No
Diagnostics	No
Group error	No
Diagnostics indication LED
Group error SF (red)	No
Galvanic isolation
Galvanic isolation analog inputs
between the channels	No
between the channels and the backplane bus	Yes
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	40-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	117 mm
Weight
Weight, approx.	250 g

Our company have the compatible cable, named 331-1KF01-0AB0,  can replace Siemens 6ES7331-1KF01-0AB0.You can have a look on the picture.

You can get it only need USD251.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Please find below discription of our compatible 331-1KF01-0AB0:

Model	SM331 8AI
Product  Description	8AI;voltage/current/RTD temperature measurement modules;Resolution:13bits Optical isolation; high immunity;stable
Power consumption
·Rate value	/
·From backplane bus current consumption	90mA
·From L+	/
·Power loss	0.4W
The power of transmitter
·Supply current	/
·short-circuit protection	/
Number of analog inputs	8
Cable Length (Shielded)	Max:200m
Input type and input range
·voltage	1~5V,0~10V,±50mV±500mV, ±1V, ±5V, ±10V
·current(4wire)	±20mA, 0~20mA, 4~20mA
·current(2wire)	/
·tesistance	600Ω,6KΩ
·thermocouple	/
·RTD	Pt100(-200℃-850℃)
A/D resolution	13bits
Basic conversion time(per channel)	66/55ms
Interference frequency suppression	50/60Hz
Tolerance(Over entire temperature range)
·Voltage	±0.6%
·Current	±0.6%
·resistance	±0.6%
·temperature	±1℃
Interrupts
Diagnostic interrupt	None
Limit-value interrupt	None
Isolation tested for contact
·Between channels	None
·Between channels and backplane bu	Yes
Front connector	40-pin
Dimensions(W x H x D)(mm)	40×125×120
Order Number	331-1KF01-0AB0

6ES7323-1BL00-0AA0                 SM323, 16DI/DO, DC24V, 0,5A

SIMATIC S7-300, DIGITAL MODULE SM 323, OPTICALLY ISOLATED, 16 DI AND 16 DO, 24V DC, 0.5A, AGGREGATE CURRENT 4A, 1X40 PIN

Here, please find below data sheet of Siemens original 6ES7 323-1BL00-0AA0:

-	SIMATIC S7-300, DIGITAL MODULE SM 323, OPTICALLY ISOLATED, 16 DI AND 16 DO, 24V DC, 0.5A, AGGREGATE CURRENT 4A, 1X40 PIN
Supply voltage
Load voltage L+
Rated value (DC)	24 V
permissible range, lower limit (DC)	20.4 V
permissible range, upper limit (DC)	28.8 V
Input current
from load voltage L+ (without load), max.	80 mA
from backplane bus 5 V DC, max.	80 mA
Power losses
Power loss, typ.	6.5 W
Digital inputs
Number/binary inputs	16
Input characteristic curve acc. to IEC 61131, Type 1	Yes
Number of simultaneously controllable inputs
all mounting positions
up to 40 °C, max.	16
up to 60 °C, max.	8
Input voltage
Type of input voltage	DC
Rated value, DC	24 V
for signal “0″	-30 to +5 V
for signal “1″	13 to 30 V
Input current
for signal “1″, typ.	7 mA
Input delay (for rated value of input voltage)
for standard inputs
at “0″ to “1″, min.	1.2 ms
at “0″ to “1″, max.	4.8 ms
at “1″ to “0″, min.	1.2 ms
at “1″ to “0″, max.	4.8 ms
Cable length
Cable length, shielded, max.	1000 m
Cable length unshielded, max.	600 m
Digital outputs
Number/binary outputs	16
Functionality/short-circuit strength	Yes; Electronic
Response threshold, typ.	1 A
Limitation of inductive shutdown voltage to	L+ (-48 V)
Lamp load, max.	5 W
Controlling a digital input	Yes
Load resistance range
lower limit	48 Ω
upper limit	4 kΩ
Output voltage
for signal “1″, min.	L+ (-0.8 V)
Output current
for signal “1″ rated value	0.5 A
for signal “1″ permissible range for 0 to 60 °C, min.	5 mA
for signal “1″ permissible range for 0 to 60 °C, max.	0.6 A
for signal “1″ minimum load current	5 mA
for signal “0″ residual current, max.	0.5 mA
Output delay with resistive load
“0″ to “1″, max.	100 µs
“1″ to “0″, max.	500 µs
Parallel switching of 2 outputs
for increased power	No
for redundant control of a load	Yes; only outputs of the same group
Switching frequency
with resistive load, max.	100 Hz
with inductive load, max.	0.5 Hz
on lamp load, max.	100 Hz
Aggregate current of outputs (per group)
horizontal installation
up to 40 °C, max.	4 A
up to 60 °C, max.	3 A
Cable length
Cable length, shielded, max.	1000 m
Cable length unshielded, max.	600 m
Encoder
Connectable encoders
2-wire sensor	Yes
Permissible quiescent current (2-wire sensor), max.	1.5 mA
Isochronous mode
Isochronous operation (application synchronized up to terminal)	No
Interrupts/diagnostics/status information
Alarms
Alarms	No
Diagnostic messages
Diagnostic functions	No
Diagnostics indication LED
Status indicator digital output (green)	Yes
Status indicator digital input (green)	Yes
Galvanic isolation
Galvanic isolation digital inputs
between the channels	Yes
between the channels, in groups of	16
between the channels and the backplane bus	Yes; Optocoupler
Galvanic isolation digital outputs
between the channels	Yes
between the channels, in groups of	8
between the channels and the backplane bus	Yes; Optocoupler
Permissible potential difference
between different circuits	75 VDC / 60 VAC
Isolation
Isolation checked with	500 V DC
Connection method
required front connector	40-pin
Dimensions
Width	40 mm
Height	125 mm
Depth	120 mm
Weight
Weight, approx.	260 g

Our company have the compatible cable, named 323-1BL00-0AA0,  can replace Siemens 6ES7 323-1BL00-0AA0.You can have a look on the picture.

You can get it only need USD247.00/pc.    Buy now ====>

It’s tested before shippment.Not made by Siemens,OEM product as the replacement.

The quality is guaranteed, we have 1 year warranty for our compatible products.

Please find below discription of our compatible OEM 323-1BL00-0AA0:

Model	SM323 inputs/outputs:16
Product  Description	16DI,24VDC/16DO, 24 VDC; Transistor;Optical isolation with high immunity.
Power consumption
·From backplane bus current consumption	80mA
·Power loss	6.5W
Input Feature
Number of digital inputs	16
Input voltage
·Rate value	24V DC
·For ”0” signal	-30~5V DC
·For ”1” signal	13~30V DC
Input current	7mA
Input delay
·From “0”  to “1”,Min	1.2~4.8ms
·From “1”  to “0”,Min	1.2~4.8ms
Input type	NPN
Connection of 2-wire BERO sensor	Yes
Permissible quiescent current	1.5mA
Output Feature
Number of digital outputs	16
Short-circuit protection	Yes,Electronic
Inductive cutoff voltage	L+(-53V)
Lamp load.Max	5W
Output voltage:for ”1” signal	Min:L+(-53V)
Output current:for ”1” signal	0.5A
Isolation tested for contact
·Between channels and backplane bus	Yes
·Per group between channels	Yes
Cable Length (Shielded)	1,000m
Cable Length (unshielded)	600m
The status indicates	Green LED each channel
Front connector	40-pin
Dimensions(W x H x D)(mm)	40×125×120
Order Number	323-1BL00-0AA0
